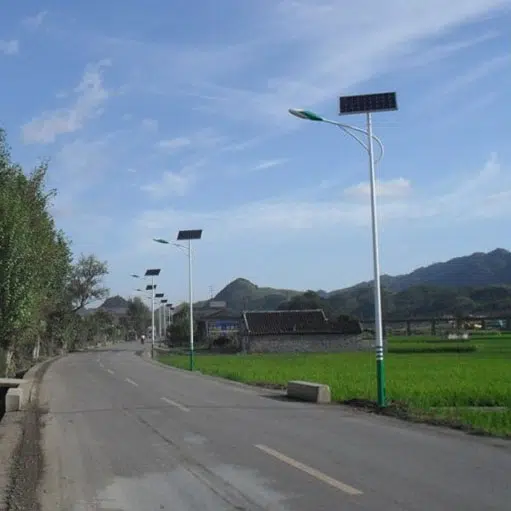

24W Solar Street Light DC12V 5M 6M Pole with Lead-Acid Battery Buried:
24W led solar street light with super bright LED lamp, pure white, IP65, 2880 lumens
5-6 meter steel light pole with its fittings treated by hot dip galvanizing and plastic powder coating
110Wp monocrystalline or polycrystalline solar panel
12V/120AH maintenance free sealed gel battery
12V/10A waterproof intelligent solar controller IP67
12V/120AH buried waterproof plastic battery box
Cable and fasteners
Configurations of 5M 6M Solar Street Light designed on 5 kWh/m2/day:
| LED Lamp | Proposed Light Pole | Solar Panel | Gel Battery | Solar Controller | Battery Box |
| 5 W | 2-3M | 20Wp | 12V/24AH | 12V/24V 5A | 12V/38AH |
| 7 W | 2-3M | 30Wp | 12V/33AH | 12V/24V 5A | 12V/38AH |
| 9 W | 3-4M | 40Wp | 12V/38AH | 12V/24V 5A | 12V/38AH |
| 12 W | 3-4M | 50Wp | 12V/55AH | 12V/24V 5A | 12V80AH |
| 15 W | 4-5M | 70Wp | 12V/70AH | 12V/24V 5A | 12V80AH |
| 18 W | 4-5M | 80Wp | 12V/80AH | 12V/24V 5A | 12V80AH |
| 20 W | 5-6M | 90Wp | 12V/90AH | 12V/24V 5A | 12V/120AH |
| 24 W | 5-6M | 110Wp | 12V/120AH | 12V/24V 10A | 12V/120AH |
| 30 W | 5-6M | 130Wp | 12V/150AH | 12V/24V 15A | 12V/200AH |
| 36 W | 7-8M | 2*80Wp | 2*12V/80AH | 12V/24V 10A | 24V/80AH |
| 40 W | 7-8M | 2*90Wp | 2*12V/90AH | 12V/24V 10A | 24V/120AH |
| 45 W | 8-9M | 2*100Wp | 2*12V100/AH | 12V/24V 10A | 24V/120AH |
| 50 W | 8-9M | 2*80Wp | 2*12V/80AH | 12V/24V 10A | 24V/80AH |
| 60 W | 9-10M | 2*100Wp | 2*12V/100AH | 12V/24V 10A | 24V/120AH |
| 80 W | 9-10M | 2*130Wp | 2*12V/120AH | 12V/24V 15A | 24V/120AH |
| 90 W | 10-12M | 2*150Wp | 2*12V150AH | 12V/24V 15A | 24V/200AH |
| 100 W | 10-12M | 2*160Wp | 2*12V/180AH | 12V/24V 15A | 24V/200AH |
Note:
1. Above prices are based on quantity not less than 100 units
2. Designed on averaged insolation 5 kWh/m2/day
3. Lighting time: 10-12 hours/night; 3-4 backup overcast or rainy days
4. Warranty: 3 years
Part information of 24W led solar street light:
1. Super bright LED, 5500-6500K for choice, 120LM/W, IP65 cast aluminum lamp housing.
2. High efficiency polycrystalline solar pane, with aluminum frame, tempered glass and junction box.
3. Maintenance free gelled valve regulated sealed battery, deep cycle.
4. Intelligent solar controller, IP68 waterproof, with protection functions and energy saving modes etc.
5. IP 68 waterproof battery underground box (battery box on pole top is optional)
6. Cable to meet relevant solar lighting purpose
7. Optional light pole made of Q235 quality steel, hot dipped galvanized & plastic powder coated, rust proof. With light arm,
flange base & anchor bolts, solar panel bracket and screws
Main Components of Solar Street Light:
Solar Street Light mainly includes: Solar Panel, LED lamp, Solar Controller, Battery, Battery Box, Light Pole and its fitting (solar panel bracket, light arm and anchor boat), cable and fasteners.
